Building a Private P2P Network with wisper: Public-Key Tunnels and TUN Networking

wisper is more than a reverse-tunnel manager that exposes a local port to the public internet. It also supports two more private modes:

1. P2P tunnel — expose a local service to peers by public key, with no public URL and no open port;
2. TUN networking — let another machine join a virtual network and reach the hub (and the networks behind it) as if they were on the same LAN.

This tutorial walks through both with three roles. The screenshots come from a real wisper deployment (English UI); commands and explanations are in English.

What you will build

• Serve a local service to a specific peer through a DERP relay, using public keys instead of a public endpoint;
• Read the direct / relay transport badge and know which path the traffic takes;
• Create a TUN hub, add a spoke to its virtual network, and verify it with ping and TCP;
• Understand the key, allowlist, routing, and privilege boundaries well enough to debug your own setup.

The lab topology:

Role	Address	Purpose
DERP relay	ws://derper:8080	Signaling + fallback (self-hosted in the lab; use wss:// in production)
hub	10.10.0.1/24	Holds the TUN device; its P2P tunnel exposes 127.0.0.1:8080
laptop	127.0.0.1:18080	P2P entrypoint; reaches the service on the hub
tablet	10.10.0.2/24	TUN spoke; joins the hub's virtual network

Why two spokes in the lab

Both a P2P entrypoint and a TUN entrypoint use the host's p2p identity (public key). On one host, a key can belong to only one p2p tunnel or one tun hub — inbound streams are routed by key and cannot point at two objects. That is why the lab uses laptop for P2P and tablet for TUN. In practice, use two devices, or put the P2P tunnel on a different hub.

Prerequisites

Install and start

Docker is the quickest option:

docker run -d --name wisper \
  -p 127.0.0.1:8900:8900 \
  -v wisper-data:/root/.config/wisper \
  gogost/wisper:latest

Open http://127.0.0.1:8900. A TUN hub (or a TUN spoke that creates a device) needs NET_ADMIN and /dev/net/tun; to let peers reach the host's real LAN, it also needs host networking:

docker run -d --name wisper \
  --network=host \
  --cap-add=NET_ADMIN \
  --device /dev/net/tun:/dev/net/tun \
  -v wisper-data:/root/.config/wisper \
  gogost/wisper:latest -addr 127.0.0.1:8900

# Only needed on a Linux hub when spokes must reach each other
sudo sysctl -w net.ipv4.ip_forward=1

You can also download a binary for Linux, macOS, Windows, Android, or Chrome from GitHub Releases:

sudo ./wisper -addr 127.0.0.1:8900

The wisper web UI/API has no login

-addr defaults to :8900 (all interfaces). Bind it to 127.0.0.1, or put it behind a reverse proxy with authentication and TLS. Do not expose port 8900 directly to the internet — anyone who can open the page can create tunnels.

Prepare the DERP relay

P2P uses a DERP relay for signaling and fallback: traffic takes the hole-punched path when possible, and the relay when it cannot.

• Public default: wss://derp.gost.run/derp; leave the field empty to use it.
• Self-hosted: use deploy/docker-compose.yml from go-gost/derper. It serves plain WebSocket on :8443 and STUN on :3478 by default; put TLS in front for wss:// in production.

When STUN is empty, wisper derives "relay host + 3478". If the relay does not serve STUN, wisper probes it, gives up on punching, and keeps using the relay — it does not hang.

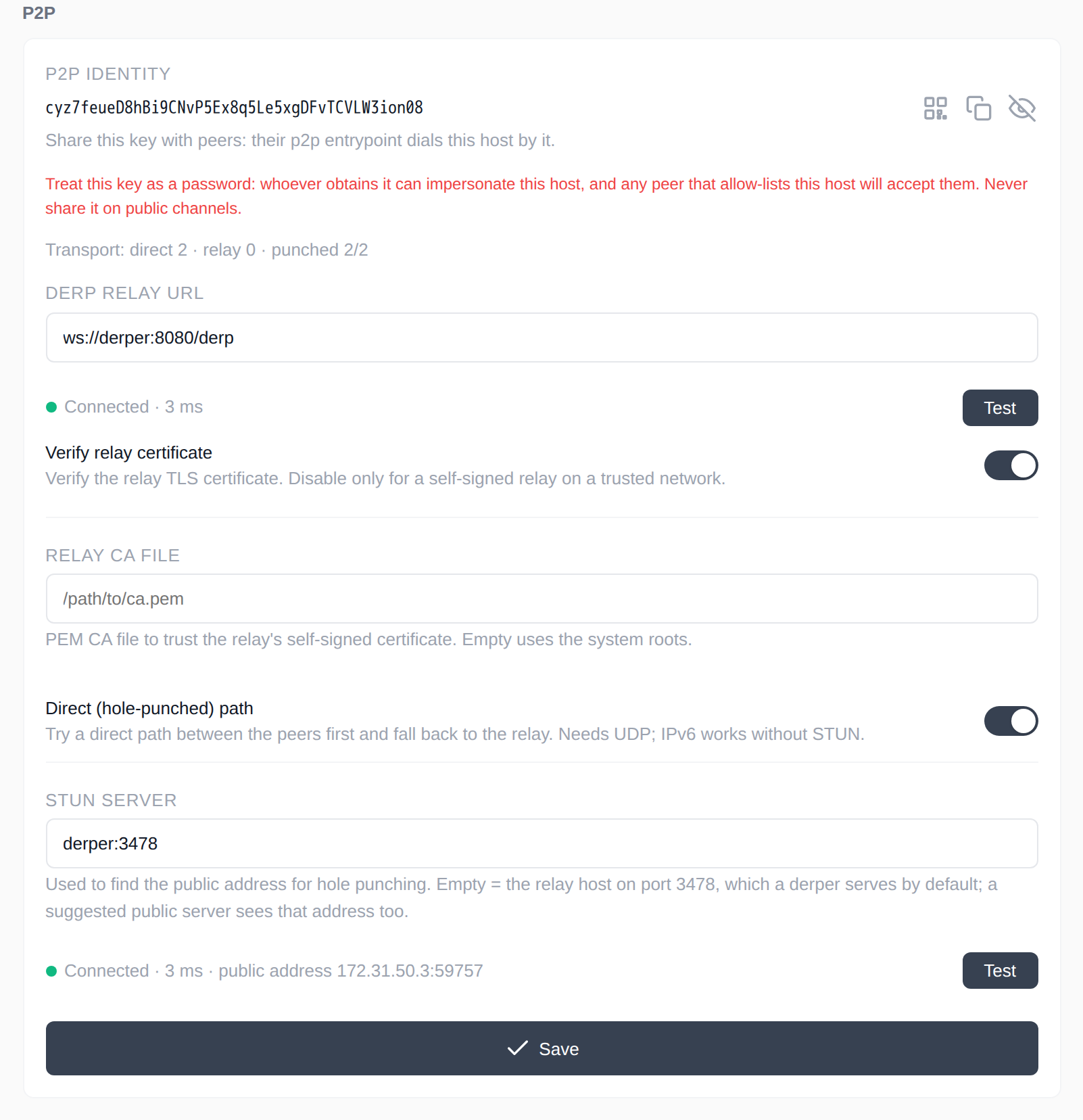

Check the identity

On both the service side and the client side, open Settings → P2P:

1. Click the eye icon to reveal P2P IDENTITY, then copy it;
2. Enter the DERP URL and click Test; it should say Connected;
3. Keep Direct (hole-punched) path on. If STUN is not the default, enter it and click Test; it should show a public address;
4. Click Save.

The public key is this host's identity. Share it with peers for dialing and allowlisting. The real secret is the private key in p2p/host.key; never share that.

About the red warning in the screenshot

The Settings page calls the identity key a password. That is conservative wording: the public key is meant to be shared with peers that need to dial or allowlist you. Only the private key (p2p/host.key) lets someone impersonate this host. The allowlist decides which identities may connect.

About the relay URL in the screenshot

ws://derper:8080/derp is the lab's self-hosted plaintext relay. In production use wss://, and enable Verify relay certificate or provide a Relay CA file as needed.

Part 1: Reach a local service by public key (P2P)

1. Create the P2P tunnel on the service side

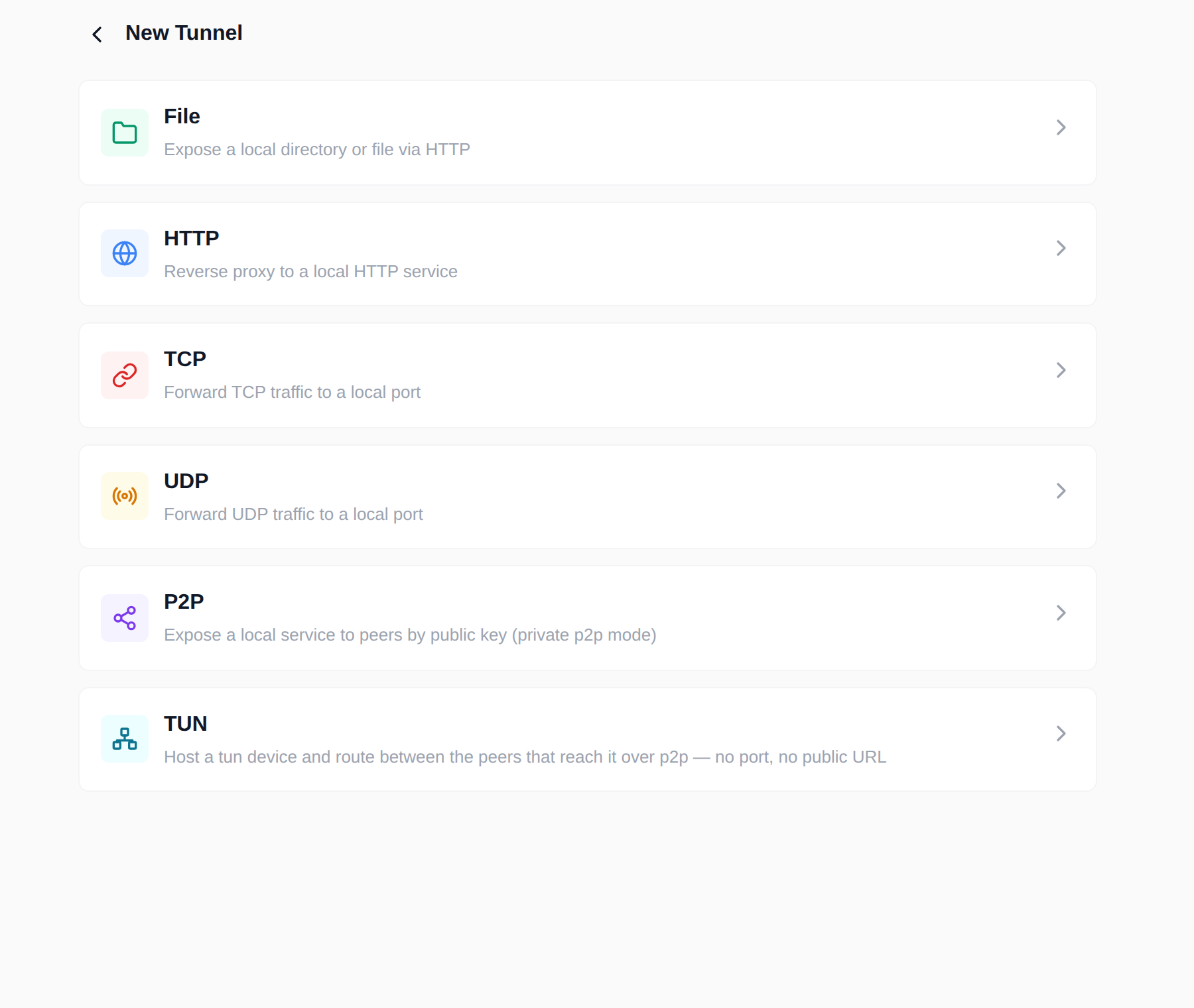

On the hub, open Tunnels → + → P2P:

Fill in:

Field	Example	Notes
Name	Private Service	Display only
Endpoint	127.0.0.1:8080	The local TCP/UDP service to expose

Save, and the tunnel starts immediately. A P2P tunnel has no public URL and no listening port — only allowlisted public keys can dial in.

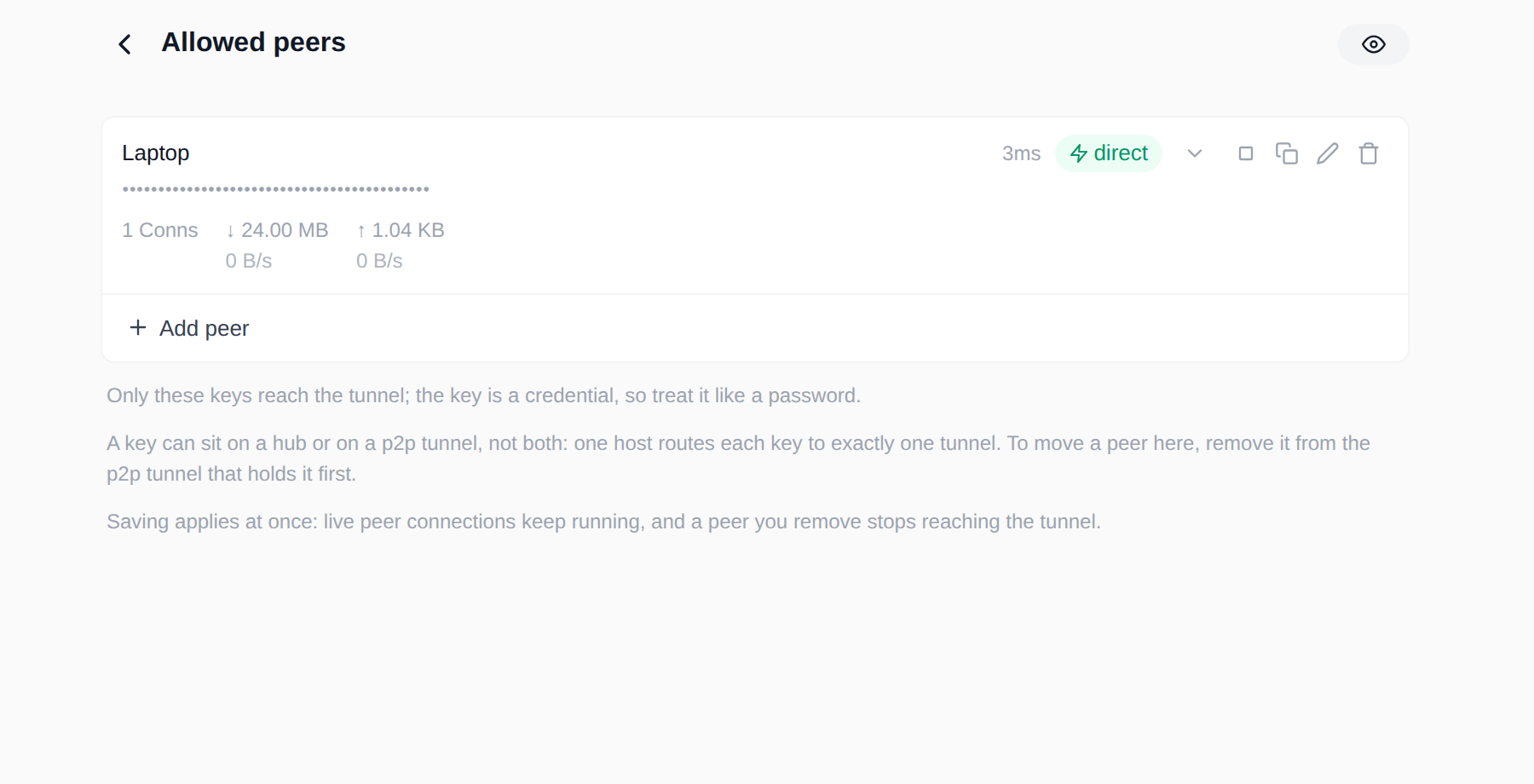

2. Allow the client's public key

Open the tunnel, go to Allowed peers, click Add peer, paste the client laptop's public key, and give it the alias Laptop:

A few rules that are easy to miss:

• Pending requests: a key that knocks but is on no allowlist appears in the requests list on the peers page. A p2p stream carries no destination, so wisper cannot tell which tunnel it wanted; Add to this tunnel is what puts it on the current one.
• Disabled: the key stays on the list but new connections are refused; established connections finish naturally. Useful for a temporary block instead of a delete.
• One key, one object per host: on the same host, a key belongs either to one p2p tunnel or to one tun hub. To move a peer, remove it from the old object first.
• Public key is identity: the allowlist is the only application-level admission for p2p; there is no username/password on top. The public key is shareable; the private key is not.

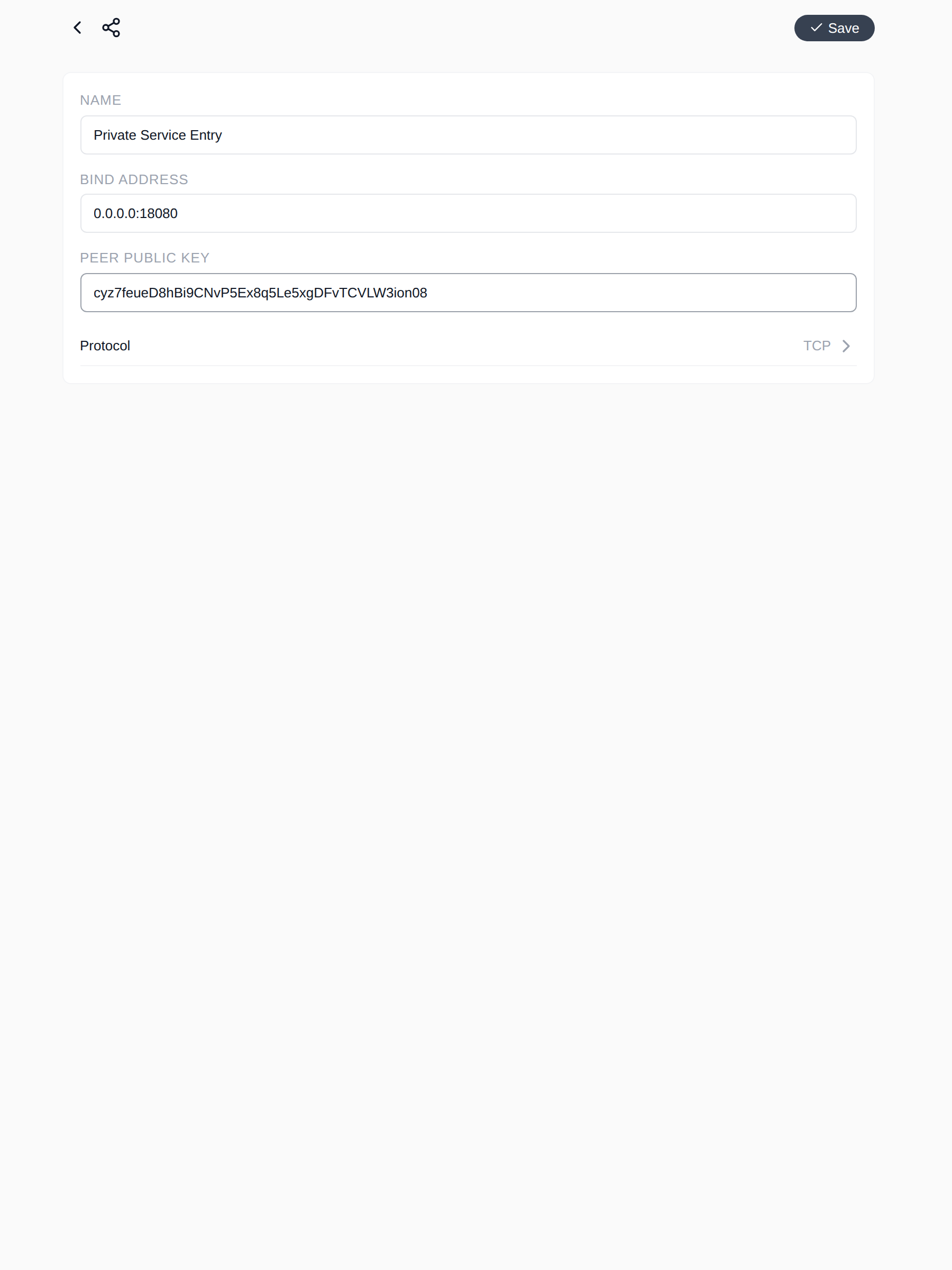

3. Create the P2P entrypoint on the client

On laptop, open Entrypoints → + → P2P:

The screenshot binds 0.0.0.0:18080 so the host can reach it; for everyday use, bind 127.0.0.1:18080 and keep it local.

Field	Example	Notes
Name	Private Service Entry	Display only
Bind Address	127.0.0.1:18080	Local listen address; 0.0.0.0 exposes it to the LAN
Peer Public Key	the hub's P2P IDENTITY	Dial target
Protocol	TCP or UDP	Inner protocol; choose what the local client needs

After saving, traffic to 127.0.0.1:18080 on laptop goes through the p2p tunnel to 127.0.0.1:8080 on the hub.

4. Verify

curl -sS http://127.0.0.1:18080/healthz

Expected output:

ok

The entrypoint detail page should show something like this (numbers vary with traffic):

Running
Transport  direct  1ms
Total Conns  7
Download     12.00 MB

direct means the peers punched through and traffic bypasses the relay. relay still works, only through the relay. The home cards and the peers page show cumulative bytes, active connections, and live rates:

5. UDP and keepalive

Set the entrypoint's Protocol to UDP and the same p2p tunnel can serve UDP peers — the tunnel side needs no change and serves TCP and UDP transparently.

• Keepalive on (default): keep the client session and its tunnel alive between datagrams; good for long-lived UDP applications.
• Keepalive off: one tunnel per datagram; correct semantics, higher overhead.

TCP half-close limitation on P2P entrypoints

The current implementation does not support TCP half-close: after the client calls shutdown(SHUT_WR), the return direction also ends. curl and browsers are unaffected; busybox wget and some nc usages may close the write side immediately after sending and never see the response. Use curl when verifying.

Part 2: Build a virtual network with TUN

Roles and addresses

A P2P tunnel is "reach one service by public key". TUN is "join an IP network".

Role	Responsibility	Privilege
hub	Holds the tun device; the device is the network and forwards between peers	root / CAP_NET_ADMIN / Administrator
spoke	Creates its own tun device and joins the hub's network	root / CAP_NET_ADMIN / Administrator (Android uses VpnService)

• The hub assigns addresses: with net 10.10.0.1/24, the first spoke is usually 10.10.0.2/24.
• The spoke's configured address must exactly match the address assigned on the hub's peers page.
• The topology is a star: traffic goes through the hub. Spoke-to-spoke traffic needs IP forwarding on the hub.

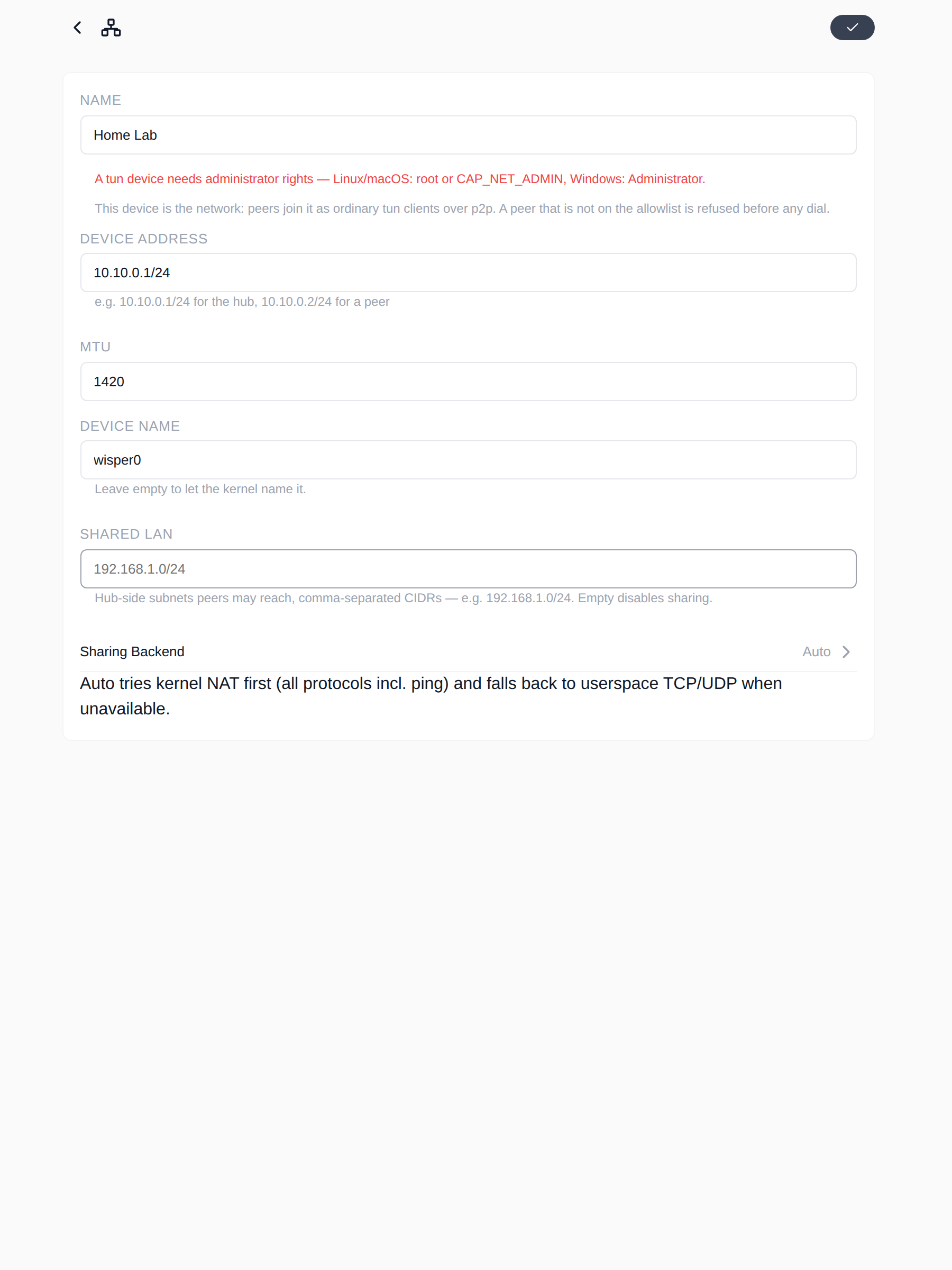

1. Create the hub

On the hub, open Tunnels → + → TUN:

Field	Example	Notes
Name	Home Lab	Display only
Device Address	10.10.0.1/24	The hub device address; this subnet is the virtual network
MTU	1420	Default; usually no need to change
Device Name	wisper0	Leave empty to let the kernel name it
Shared LAN	empty	Fill in later to share the hub-side LAN with spokes

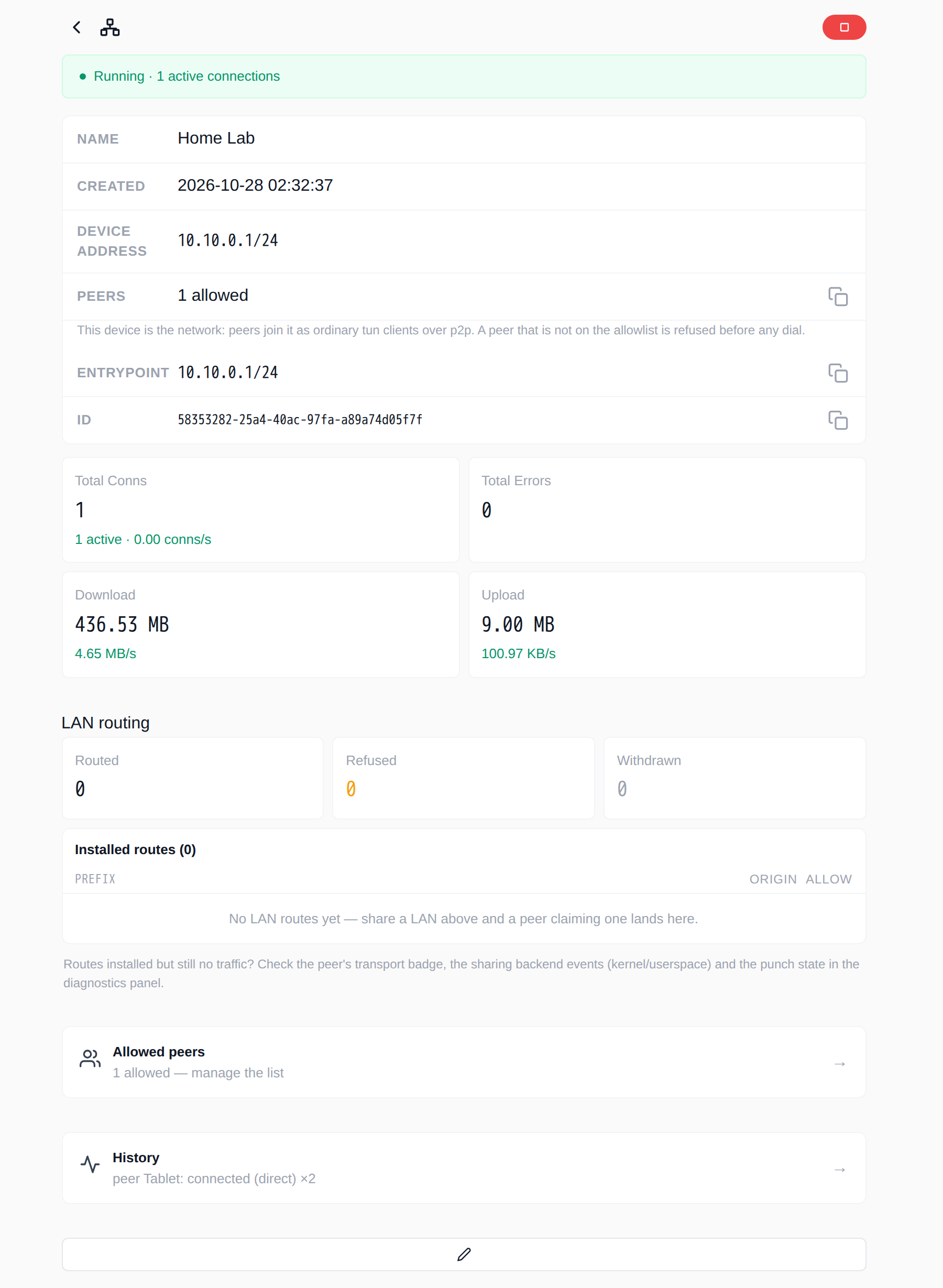

Save. The hub creates a tun device and waits for allowlisted spokes. With no peers it reports "running, but routing nothing".

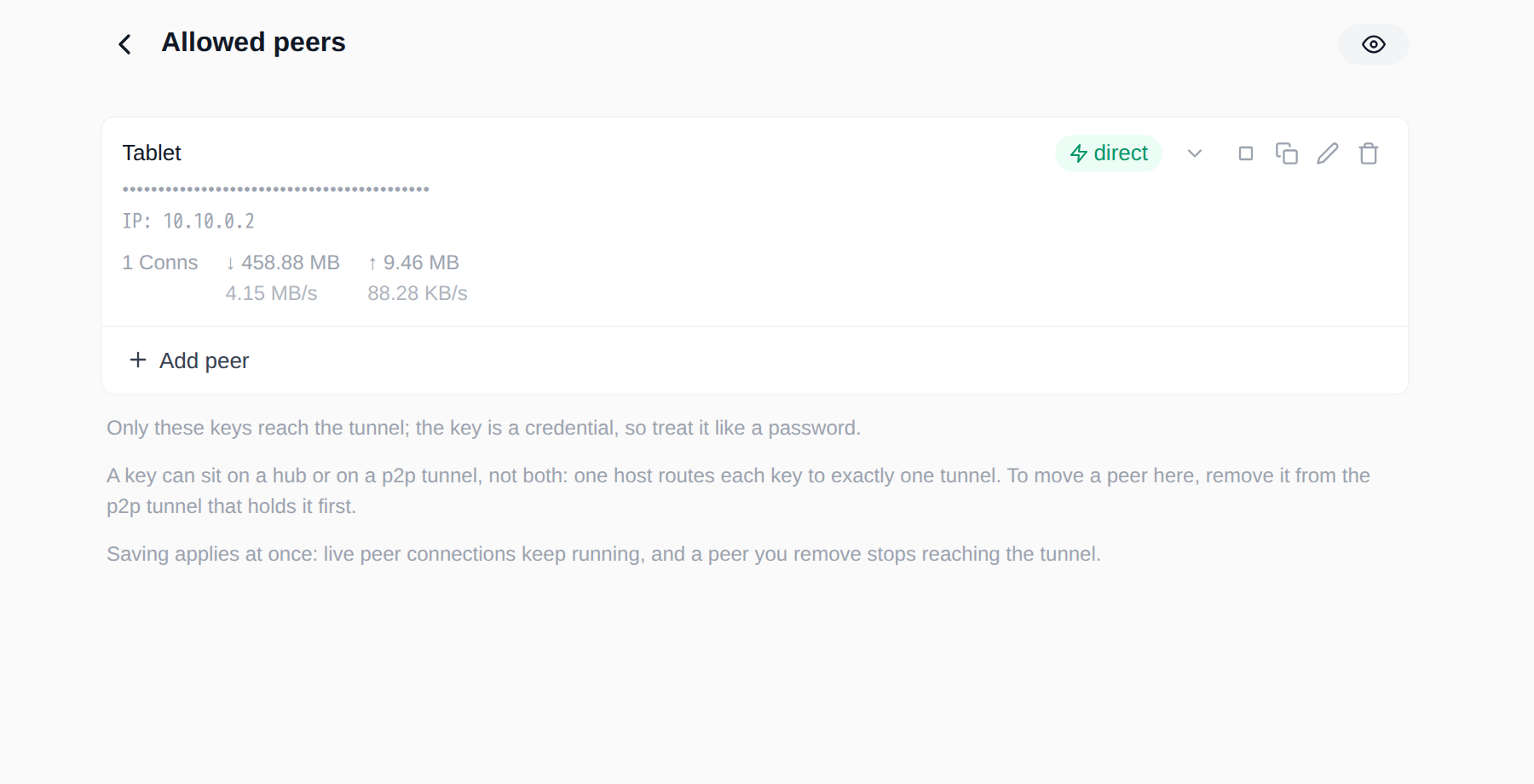

2. Assign the spoke address on the hub

Go to Allowed peers → Add peer, paste tablet's public key, set the alias Tablet, leave IP empty so the hub allocates one, and save:

It shows IP: 10.10.0.2; copy that address into the spoke's configuration. Some details:

• The IP in the row is the address this spoke may claim; the spoke's declaration must match it exactly. Otherwise the hub installs no route, does not echo keepalives, and records a warning event.
• Clearing a row means "allocate again"; a row you did not touch keeps its address.
• Changing the hub's net is refused if existing addresses fall outside the new subnet. To renumber, remove the spoke on the peers page, change net, then add it back.
• On the same host, a public key can belong to only one hub or p2p tunnel.

3. Join the network from the spoke

On tablet, open Entrypoints → + → TUN and fill in:

Field	Example	Notes
Name	Join Home Lab	Display only
Device Address	10.10.0.2/24	Must be the address the hub assigned
MTU	1420	Keep it consistent with the hub
Peer Public Key	the hub's P2P IDENTITY	Dial target
Routes	empty	Empty routes only the hub's virtual subnet; you can add e.g. 192.168.50.0/24
DNS	empty, or a DNS address the hub provides	Optional; the hub does not force it
Shared LAN	empty	Fill in later to share the spoke-side LAN

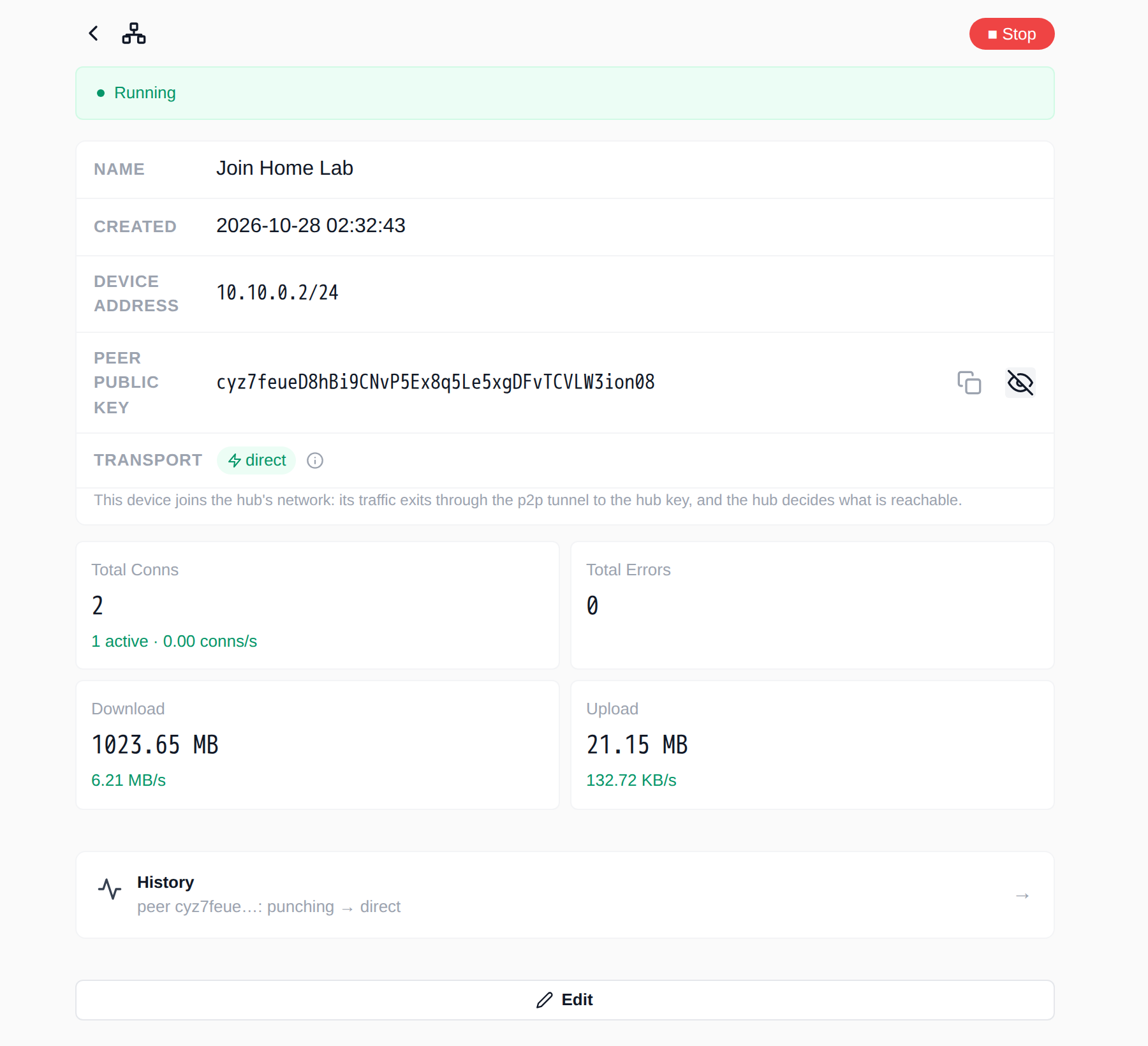

Save. The spoke creates its own tun device and dials the hub through the p2p tunnel.

About 0.0.0.0/0

0.0.0.0/0 sends all traffic into the tun. On desktop you must exclude the DERP and hole-punching traffic from the tun yourself (policy routing / exclude the relay address), or the connection carrying the tunnel loops back into itself. The Android build does not do full-tunnel egress yet. This tutorial routes only the virtual subnet.

4. Verify

On tablet:

ping -c 2 10.10.0.1

Expected output:

PING 10.10.0.1 (10.10.0.1): 56 data bytes
64 bytes from 10.10.0.1: seq=0 ttl=64 time=0.500 ms
64 bytes from 10.10.0.1: seq=1 ttl=64 time=0.579 ms

--- 10.10.0.1 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss

If the hub runs a service on 10.10.0.1:8080 (or 0.0.0.0:8080), verify TCP too:

curl -sS http://10.10.0.1:8080/healthz

Expected output:

ok

5. Share a LAN (optional)

TUN routes only the virtual subnet by default. To let a spoke reach the hub's real LAN, or the other way around, add explicit sharing:

Scenario	Where to configure	Effect
A spoke reaches the hub's LAN	The hub's Shared LAN, e.g. 192.168.1.0/24	Spokes can reach the LAN behind the hub
The hub or other peers reach a spoke's LAN	The spoke's Shared LAN, e.g. 192.168.50.0/24, plus a LAN allow row for that spoke on the hub's peers page	The hub approves or refuses the claim; refusals are recorded as events

Leave Sharing Backend on Auto: it prefers kernel NAT (all protocols, including ping) and falls back to userspace TCP/UDP. After a fallback, ping does not reach the shared LAN, but TCP/UDP still works.

Spoke-to-spoke traffic

Traffic between two spokes must be forwarded by the hub. A Linux hub needs net.ipv4.ip_forward=1 and firewall forwarding rules; reaching the hub itself does not require it.

6. Android as a spoke

The Android app borrows a tun device from the system's VpnService. It does not need root, but it can only be a spoke, not a hub:

• The first start shows a one-time VPN permission prompt.
• The device address must still be the one the hub assigned.
• Android allows only one VPN at a time. If another VPN takes over, wisper's tun entrypoint stops instead of fighting for the device; start it again to preempt the other app.
• The current build does not do full-tunnel egress; it routes the virtual subnet (and any subnets you configure explicitly).

Security model

• Public key is identity, private key is the credential. The public key (P2P IDENTITY) is used for dialing and allowlists and can be shared. The private key lives in p2p/host.key; leaking it is what lets someone impersonate this host. The allowlist decides which identities may connect, and the forced encrypted handshake proves possession of the matching private key.
• The data plane is end-to-end encrypted. The current p2p data plane forces X25519 ephemeral keys plus ChaCha20-Poly1305, for TCP and UDP, over both direct and relayed paths. The relay forwards ciphertext only; it can see connection metadata (keys, timing, byte counts) and can deny service, but it cannot read or downgrade the traffic.
• The inner protocol is still raw TCP/UDP. p2p protects the link between peers; it does not add TLS to your application. Keep using HTTPS or application-level authentication for HTTP services.
• The web UI/API has no authentication. Bind it to 127.0.0.1 or put it behind an authenticating reverse proxy.
• Rotate the identity: stop wisper, delete p2p/host.key from the config directory, start it again to generate a new key, then update every peer's allowlist.
• A TUN hub touches the host network. When sharing a LAN, review the allowlist and firewall rules carefully.

UI copy

If the entrypoint detail page says "unencrypted (the inner protocol is plaintext)", that copy predates forced p2p encryption. Trust encryption is forced in the Settings → Diagnostics report instead.

Troubleshooting

Transport badges

Badge	Meaning	What to do
direct	Hole punching succeeded; traffic bypasses the relay	Nothing
relay	Traffic goes through the relay, not the direct path	Check UDP/STUN; symmetric NAT makes this expected
punching	Direct path is being negotiated	Wait
failed	Punching failed for this peer (often symmetric NAT)	It falls back to the relay; check the network
no-candidates	No usable STUN and no IPv6	Configure STUN
stun-unreachable	STUN is configured but not responding	Fix the STUN address/port

Hover over the badge to see the reason. Home cards do not show a badge because one tunnel can have multiple peers on different paths; the peers page and entrypoint detail page do.

Common issues

Symptom	Likely cause	Fix
Settings → P2P Test fails	Wrong URL, firewall, ws:// vs wss://, self-signed certificate	Check URL/port and firewall; disable certificate verification or provide a CA for a self-signed relay; use ws:// only for trusted-LAN debugging
Always relay	Symmetric NAT, UDP blocked, STUN unreachable	This is the expected fallback; check the STUN test
Client connects but the service does not respond	Wrong Endpoint, service not listening, allowlist not saved	curl the local service on the hub first
Entrypoint cannot connect	Wrong public key, key already on another object, allowlist missing	Compare P2P IDENTITY and the peers page
TUN ping fails	Spoke address does not match the hub's assignment, hub not running, firewall	Compare the IP on the peers page; check hub events
TUN TCP works but ping to a shared LAN does not	Sharing Backend fell back to userspace	Install iptables / grant NET_ADMIN so kernel NAT can run
Creating a TUN device fails with a privilege error	No root/CAP_NET_ADMIN, or the container lacks /dev/net/tun	Add the privileges from "Prerequisites"

Diagnostics and events

Settings → Diagnostics → Run diagnostic produces a pasteable report: relay state, transport counters, each peer's path, and recent punch records. The peers page's History and Settings → Host events record disconnects, recoveries, and lifecycle events. Check these three before digging through logs.

Automating with the API (optional)

Every UI action has an HTTP API. For example, create a P2P tunnel on the hub and add a peer:

HUB=http://127.0.0.1:8900

# Create the P2P tunnel and keep its id
TID=$(curl -s -X POST "$HUB/api/tunnels" \
  -H 'Content-Type: application/json' \
  -d '{"name":"Private Service","type":"p2p","endpoint":"127.0.0.1:8080"}' \
  | jq -r .id)

# Add the client's public key to the allowlist
curl -s -X PUT "$HUB/api/tunnels/$TID/peers" \
  -H 'Content-Type: application/json' \
  -d '{"peers":[{"key":"<laptop-key>","alias":"Laptop"}]}' \
  | jq '{name,status}'
# {"name":"Private Service","status":"running"}

Create the entrypoint on the client:

CLIENT=http://127.0.0.1:8900

curl -s -X POST "$CLIENT/api/entrypoints" \
  -H 'Content-Type: application/json' \
  -d '{"name":"Private Service Entry","type":"p2p","endpoint":"127.0.0.1:18080","peer":"<hub-key>","protocol":"tcp"}' \
  | jq '{name,type,status}'
# {"name":"Private Service Entry","type":"p2p","status":"running"}

TUN address assignment also works through the peers API: leave ip empty and the hub allocates from its net; the response's options.peer_ips carries the result. See the REST API table in the project README for the full route list.

Cleanup

• Stop or delete tunnels and entrypoints in the UI; tun devices close with their object.
• Removing the container and its data volume (first docker rm, then docker volume rm wisper-data) clears config and identity.
• To change identity but keep the config: delete only p2p/host.key, restart, and redistribute the new public key.

P2P is about "reaching by public key"; TUN is about "networking by IP". Keeping those two ideas separate makes it much harder to mix up allowlists, routes, and addresses. Happy networking.

---

About the screenshots

The screenshots come from an isolated Docker lab: a local derper relay, one hub, and two spokes (one for P2P, one for TUN). Addresses, keys, and traffic numbers are test data; replace them with your own relay domain, subnets, and keys.
